Build your own Voicebox

Without a semantic layer, "Who are the top spenders in Wisconsin?" means two exports and a spreadsheet. With what you built up to Chapter 14, it's one line in a terminal: python agent.py -v "Who are our top spenders in Wisconsin?", and a few seconds later Carolyn Inworth, Milwaukee, $502,529.42. But only you can use it. It runs in your terminal, under one Stardog user, and forgets each question as soon as it answers. The marketing lead who asked can't open it, and if she could, she would see SSNs that Chapter 12 says she must not see.

Stardog's answer to that is Voicebox (Chapter 13): a chat page on top of your graph. This chapter builds your own version of it, called askgraph, from the same pieces as Chapter 14's agent: the same system prompt, the same run_sparql tool, the same guard. What's new is a web page with a login checked by Stardog, a chat history per user, every SPARQL query shown in a fold-out step, a settings panel to switch the model, and a line under each answer saying how many queries and tokens it took. All the code is on GitHub, and Build step 8 runs it on your laptop.

15.1Terms in this chapter

15.2Why build your own

Ask Voicebox the book's question, "Who are the top spenders in Wisconsin?", and two things happen that are worth seeing up close.

First answer: no data. A Voicebox app has a Graph setting. With it on local, Voicebox searches only the graphs stored inside Stardog. Our customers and purchases live only in the virtual graphs over Aurora and Redshift (Chapter 9), so there is nothing to find. Switch the setting to all and ask again.

Second answer: the wrong number, confidently. Voicebox now answers, but it adds up the unit price and ignores the quantity:

Carolyn has 15 purchase lines. Her biggest is a price of 10,479.00 with a quantity of 21: that one line is 10,479.00 × 21 = 220,059.00 of real spend, and Voicebox counted it as 10,479.00. Its sentence even rounded its own table differently, saying $27,991.70 where the table said $27,991.66. The order of these three happens to survive, but across all customers it doesn't: from rank 4 down the two measures disagree, Legra Stennard (true spend $315,120, the real number 10) drops out of the price-only top ten, and Mord Pettus appears in it when he shouldn't.

Chapter 14's agent gets the same question right every time, and it's not because its model is smarter. Its system prompt says, in plain text, that :purchasePrice is the unit price, that spend = SUM(price * quantity), and it includes an example query that does exactly that. Voicebox reads your ontology, and the ontology says only that :purchasePrice is labeled "price". Nothing in the graph says what "spend" means. The definition lives in the prompt, not in the model. Whoever owns the prompt owns the answer.

Three more reasons to own the chat page:

• Access. Voicebox API keys, and so the Stardog MCP server, aren't available on the Free tier (Section 13.6). Your own app needs only a Stardog username and password.
• Identity. Your app logs each person in as their own Stardog user, so Chapter 12's rules apply to every query: hr_user sees SSNs, marketing_user doesn't (Section 15.9).
• Control and logs. You choose the prompt, the examples, the model and what gets recorded. Every query appears under its answer, with its row count and time.

15.3The whole app on one page

Follow the Wisconsin question through it with real values:

1. Log in. You type hr_user and its password. The app sends Stardog the smallest possible query, ASK {}, using those credentials. Stardog answers HTTP 200, so you're in. A wrong password gets 401 and the login page says so. The app never checks a password itself.
2. Ask. You click the starter "Top spenders in Wisconsin".
3. The model asks for a query. The agent loop sends the system prompt (about 3,700 characters, roughly 1,000 tokens), the two tool definitions and your question to the model. The model replies with a run_sparql tool call, not text.
4. The query runs as you. guard() from Chapter 14 checks it is a read with a LIMIT, then the app POSTs it to /kit-c360/query with hr_user's credentials.
5. Stardog federates. SQL to Aurora for the 8 Wisconsin customers, SQL to Redshift for their purchases, the join and SUM inside Stardog (Section 14.8). 8 rows back, in 0.4 to 0.6 seconds when the warehouses are awake.

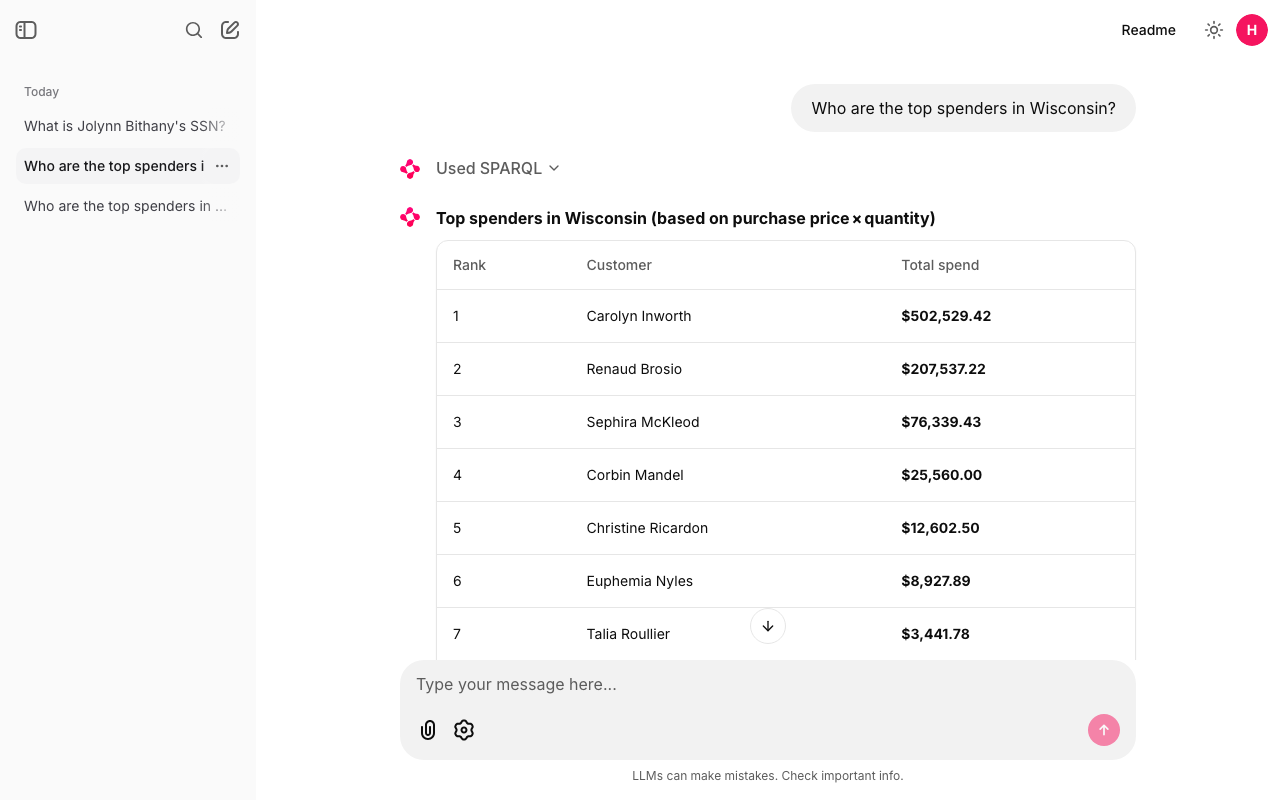

6. Answer. The rows go back to the model, which writes the answer: Carolyn Inworth $502,529.42, Renaud Brosio $207,537.22, Sephira McKleod $76,339.43, and five more. The page shows it with the query in a step above it, and the whole chat is saved for hr_user.

15.4A tour of the folder

The code is in the book's repository, code/askgraph on GitHub. It is Chapter 14's agent.py split into small files, plus a web page:

askgraph/
├── run.sh                    ./run.sh ui | cli | test
├── app.py                    the chat web page (Chainlit): login, history, steps, settings
├── cli.py                    the same agent in the terminal
├── chainlit.md               text of the page's Readme button
├── requirements.txt          chainlit, openai, requests, sqlalchemy, aiosqlite, pytest
├── config/settings.toml      model list, Stardog endpoint and database, users, limits
├── prompts/system.md         the system prompt (Chapter 14's, plus one line on permissions)
├── prompts/examples/         three worked examples, one .sparql file each
├── src/askgraph/
│   ├── agent.py              the loop: model call, tool calls, retry and fallback
│   ├── stardog.py            guard(), run_sparql, get_ontology, the login check
│   ├── tools.py              the two tool definitions the model sees
│   ├── llm.py                the OpenRouter (or OpenAI) client
│   ├── config.py             reads settings.toml and the secret files
│   └── history.py            the SQLite tables for chat history
└── tests/                    16 tests: guard, prompt, live Stardog answers, login, history

Open the folder in an editor to read along. In VS Code, code askgraph from a terminal (or File → Open Folder…); in Sublime Text, subl askgraph (or File → Open…). Start with prompts/system.md, then src/askgraph/agent.py (180 lines), then app.py (178 lines).

One script runs everything. It uses the project's own Python environment in .venv, so nothing installs globally:

./run.sh ui                                   # the chat page at http://localhost:8000
./run.sh cli --user hr -v "Who are the top spenders in Wisconsin?"   # one question in the terminal
./run.sh cli --user marketing "What is Jolynn Bithany's SSN?"
./run.sh test                                 # 16 tests, about 13 seconds

-v prints each SPARQL query, its row count and time, and the first rows. --user picks the Stardog user for the terminal; the web page takes it from the login instead.

15.5Chainlit: the chat page for free

Chainlit (version 2.12 here) is a Python library that draws the chat page for you. You write functions and mark them with decorators; Chainlit calls them at the right moment. Here is what it gives askgraph, and the few lines from app.py that ask for each.

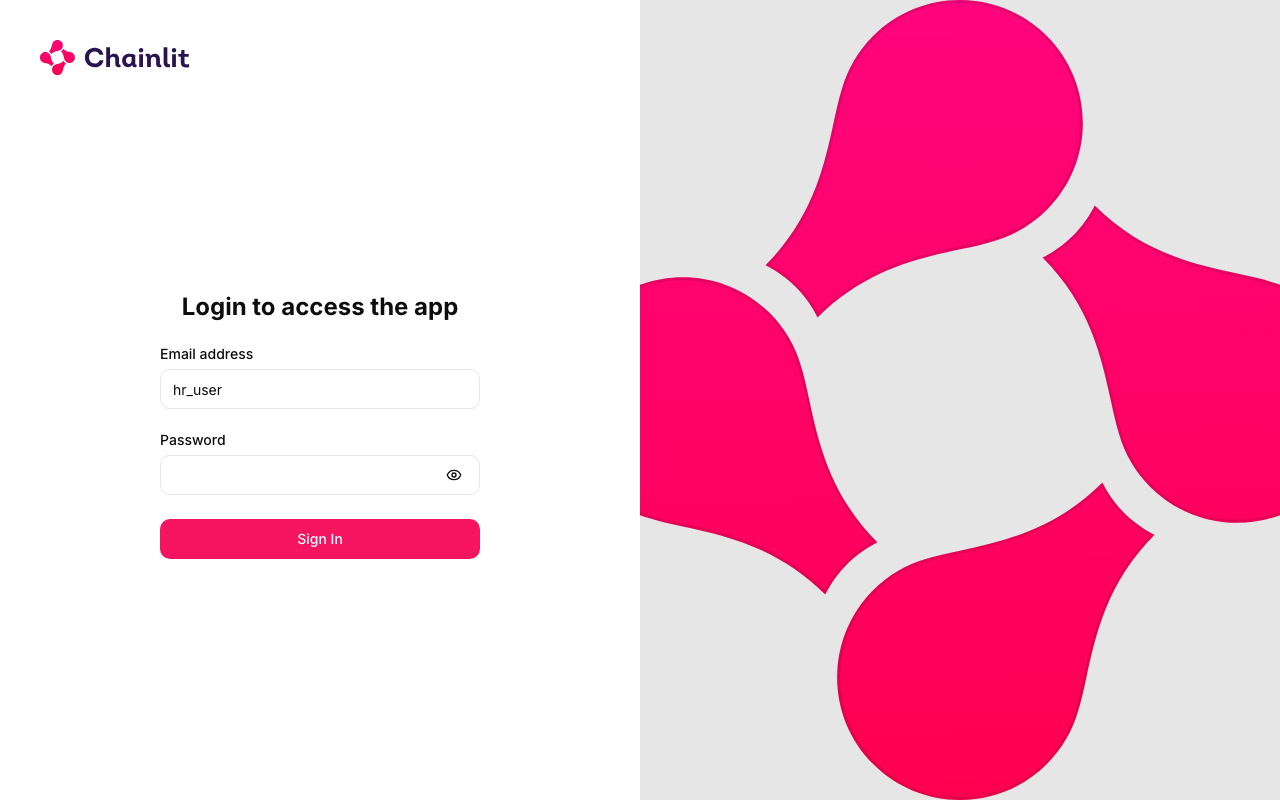

A login page. Chainlit draws it; you decide who gets in. askgraph asks Stardog:

@cl.password_auth_callback
async def auth(username: str, password: str):
    username = (username or "").strip()
    ok = await cl.make_async(check_login)(load_settings(), username, password)
    if not ok:
        return None
    _CREDENTIALS[username] = password          # in memory only, never on disk
    return cl.User(identifier=username, metadata={"provider": "stardog"})

check_login (in stardog.py) accepts only the users listed in settings.toml (hr_user, marketing_user) and returns true when Stardog answers ASK {} with HTTP 200 for that username and password.

Starter questions. Three buttons on the empty chat page:

@cl.set_starters
async def starters(user=None, language=None):
    return [
        cl.Starter(label="Top spenders in Wisconsin", message="Who are the top spenders in Wisconsin?"),
        cl.Starter(label="Big spenders per state", message="How many big spenders are there per state?"),
        cl.Starter(label="Jolynn Bithany's SSN", message="What is Jolynn Bithany's SSN?"),
    ]

Steps. The agent loop (agent.py) doesn't print anything. It hands back a stream of events: tool_call, tool_result, answer, usage. The terminal (cli.py) prints them; the web page turns each query into a fold-out step. The heart of @cl.on_message, shortened:

elif ev.kind == "tool_call":
    step = cl.Step(name="SPARQL", type="tool", show_input=False, default_open=False)
    await step.__aenter__()
elif ev.kind == "tool_result":
    step.output = f"```sparql\n{ev.query}\n```\n\n**{ev.row_count} row(s)** in {ev.elapsed:.1f}s\n\n" \
                  + md_table(ev.columns, ev.rows)
    await step.__aexit__(None, None, None)

A footer under each answer, built from the usage event: model, number of queries, tokens, cost and user, for example nvidia/nemotron-3-super-120b-a12b:free · 1 query · 4,380 tokens · $0.0000 · user hr_user.

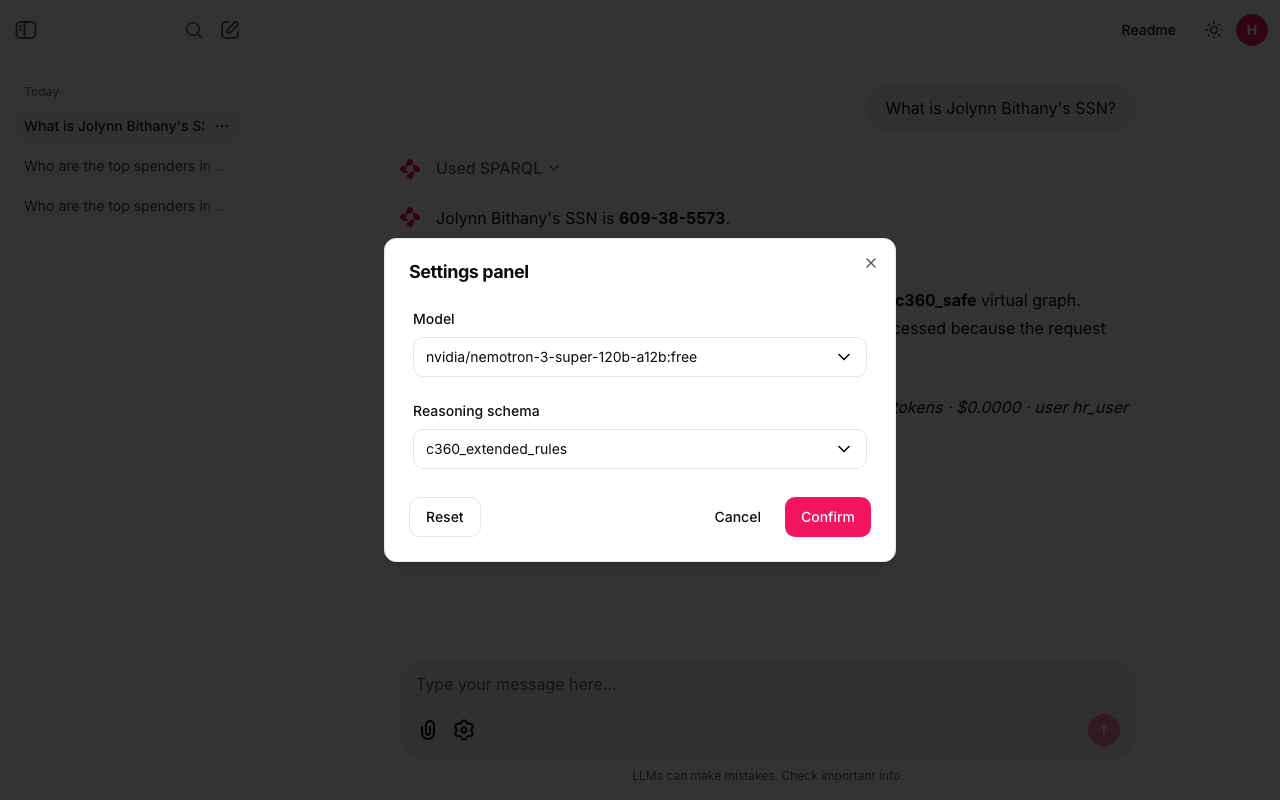

A settings panel (the gear icon in the message box) with two pickers. The choice applies to your next message:

Chat history and the sidebar, once you give Chainlit somewhere to store it (Section 15.10). Things Chainlit gives you that askgraph doesn't use: file upload (on by default, ignored here), voice input, and its own MCP client.

15.6Where each piece comes from

Nothing about your data is hard-coded in Python. It sits in files you can open and change, and the app re-reads the prompt, the examples and settings.toml on every question, so an edit applies to the next question without a restart.

Here is the example file that fixes the Voicebox mistake. Its first line is the question; the rest is a query that answers it correctly:

# Q: Who are the top spenders in Wisconsin?
PREFIX : <tag:stardog:api:ecomm:>
SELECT ?name (SUM(?p * ?q) AS ?spend) WHERE {
  GRAPH <virtual://aurora_c360_safe> { ?c :name ?name ; :address ?a . ?a :state "Wisconsin" }
  GRAPH <virtual://redshift_c360> { ?o :purchasedBy ?c ; :purchasePrice ?p ; :quantity ?q }
} GROUP BY ?name ORDER BY DESC(?spend) LIMIT 10

And the part of settings.toml you edit to point the app at your server:

[stardog]
endpoint = "https://<your-endpoint>.stardog.cloud:5820"   # or export STARDOG_ENDPOINT, which wins
database = "kit-c360"
schema   = "c360_extended_rules"           # reasoning schema (used only when reasoning=true)
timeout_s = 120                            # the first query may wake Aurora and Redshift
max_rows  = 100                            # LIMIT cap enforced by the guard

[users]
default = "hr"
hr        = "hr_user"
marketing = "marketing_user"

The one line that matters most in this chapter is spend = SUM(price * quantity) in prompts/system.md. Delete it and the example file, and this app can make Voicebox's mistake too. That shows where the definition really sits today: in a text file that only this app reads. Voicebox, Studio users and any other agent never see it. The lasting fix is to put the business definition in the graph itself, next to :purchasePrice, so every tool that reads the ontology gets the same meaning. Chapter 16 starts doing exactly that, with a metric labeled "total spend" stored in the graph.

15.7Choosing the model

The app needs a model that does tool calling well (Chapter 14): it must reply with a clean run_sparql call whose query argument is just SPARQL. Four OpenRouter models, each given the Wisconsin question:

What a question costs. On gpt-4o-mini, the Wisconsin question used 2,996 tokens and the footer showed $0.0005: twenty questions for a cent. On the free model, $0.

What "free" means. Free models on OpenRouter allow 50 requests a day while your account has no credits, and 1,000 a day once you have bought $10 of credits. A request is one model call, not one question. The Wisconsin question takes two calls (one returns the tool call, one writes the answer), so 50 requests is about 25 questions a day. When the provider is busy you get a rate limit reply, HTTP 429. askgraph then waits 8 seconds and tries once more; if it fails again it moves to the fallback model listed in settings.toml and says so in the chat (in italics, as a "system" message). Both settings live in the [llm] block:

[llm]
provider = "openrouter"
model    = "nvidia/nemotron-3-super-120b-a12b:free"
fallback_models = ["openai/gpt-4o-mini"]
ui_models = ["nvidia/nemotron-3-super-120b-a12b:free", "openai/gpt-4o-mini"]
retry_backoff_s = 8
max_tool_turns  = 8

Privacy. Free endpoints may log your prompts or use them for training. A prompt contains your question and the rows Stardog returned: for hr_user asking about Jolynn Bithany, that includes the SSN 609-38-5573. Here that's fine, because every name and SSN in the c360 kit is made up. With real customer data, use a paid provider whose terms rule out training, or a model inside your own cloud account (the blog uses Amazon Bedrock), and keep the agent's Stardog user away from PII (Chapter 12).

To switch models: pick one in the settings panel (for this chat), change model in settings.toml (for everyone, from the next question), or pass --model on the command line. Use model ids from openrouter.ai/models that list tool support, and run the three starter questions before trusting a new one.

15.8See every query, and measure it

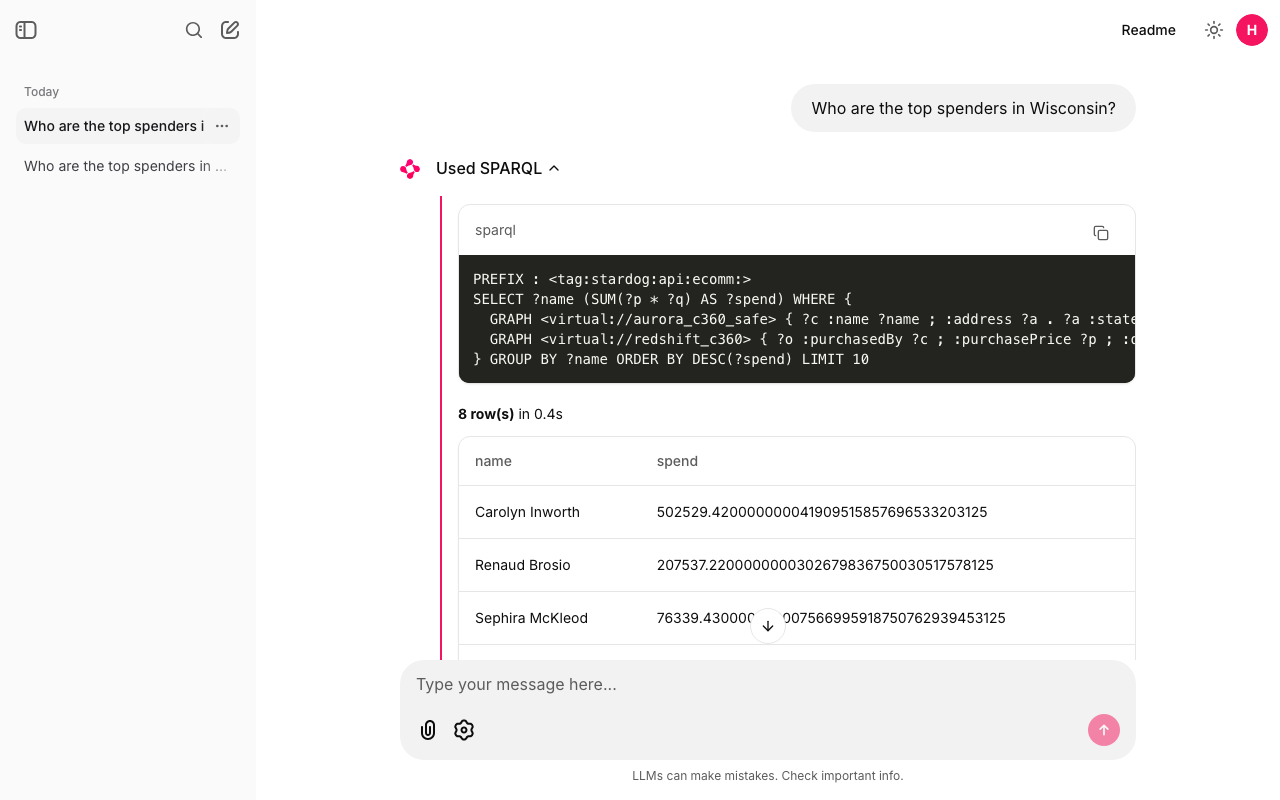

Open the "Used SPARQL" step under the Wisconsin answer and you see exactly what ran:

Look at Carolyn's raw number: 502529.420000000041909515857696533203125. That is what Stardog sent back (the multiplication passes through a binary floating-point number, the same effect Chapter 9 showed with xsd:float). The model rounded it to $502,529.42 in the answer. Reading the step tells you which numbers came from the database and which the model wrote.

The same information is in the terminal with -v. This is a real run:

$ ./run.sh cli --user hr -v "Who are the top spenders in Wisconsin?"
askgraph: user=hr_user model=nvidia/nemotron-3-super-120b-a12b:free

--- run_sparql (reasoning=False) ---
PREFIX : <tag:stardog:api:ecomm:>
SELECT ?name (SUM(?p * ?q) AS ?spend) WHERE {
  GRAPH <virtual://aurora_c360_safe> { ?c :name ?name ; :address ?a . ?a :state "Wisconsin" }
  GRAPH <virtual://redshift_c360> { ?o :purchasedBy ?c ; :purchasePrice ?p ; :quantity ?q }
} GROUP BY ?name ORDER BY DESC(?spend) LIMIT 10
--- 8 row(s) in 0.5s
    Carolyn Inworth | 502529.420000000041909515857696533203125
    Renaud Brosio | 207537.2200000000302679836750030517578125
    Sephira McKleod | 76339.430000000007566995918750762939453125
    Corbin Mandel | 25560
    ...
(the answer: a table with all 8 customers, then "Data used")

[nvidia/nemotron-3-super-120b-a12b:free | 1 query | 4496 tokens | cost $0.0000]

Timing a few questions with the warehouses already awake gives a clear picture:

Three things stand out:

• Stardog is the fast part. Half a second for a query that joins Aurora and Redshift. The other 4 to 6 seconds are the model reading the prompt and writing. In the web page the same questions took 5.8, 5.8 and 6.8 seconds from click to answer.
• The first question of the day is the slow one. When Aurora and Redshift have paused to save money, the first query waits while they wake: 15 to 60 seconds. That's why timeout_s is 120. The next questions are back to half a second.
• Tokens follow model calls. Every call resends the whole prompt, about 1,000 tokens. The Wisconsin question makes two calls; the marketing SSN question makes three (two queries, then the answer), so it uses the most tokens: 6,306.

15.9Same question, two users

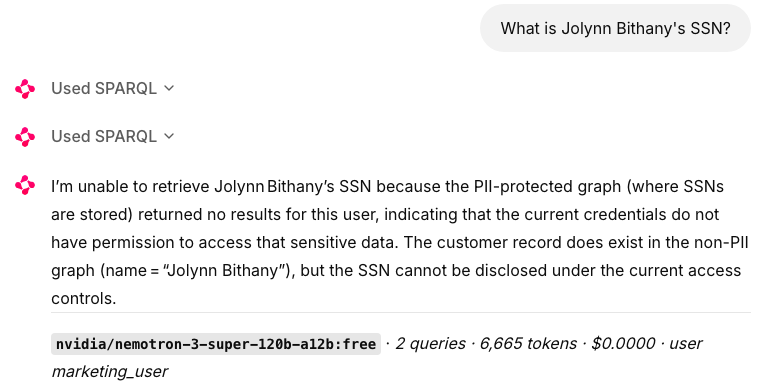

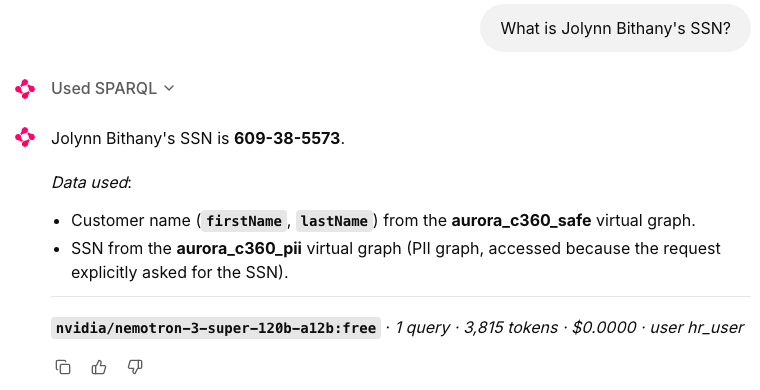

Log in as hr_user and ask "What is Jolynn Bithany's SSN?". Then log out (the round avatar, top right), log in as marketing_user and ask the same thing. Same app, same model, same prompt:

Figure 15.6: The same question as two Stardog users. The SSN is fake, from the c360 kit.

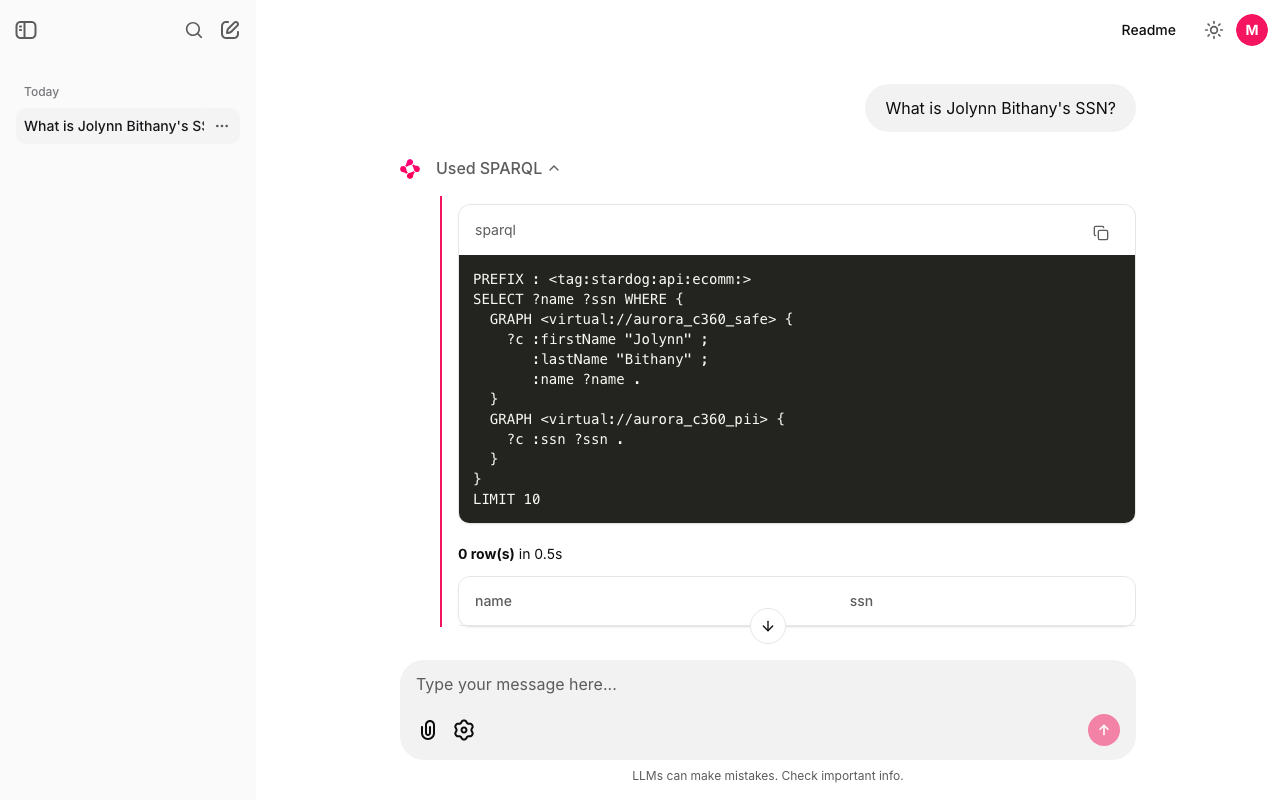

Open the marketing user's steps and you can see what Stardog did:

1. The first query is identical for both users: find Jolynn in <virtual://aurora_c360_safe> and her :ssn in <virtual://aurora_c360_pii>.
2. For hr_user, Stardog reads both graphs and returns 1 row: Jolynn Bithany | 609-38-5573.
3. For marketing_user, Chapter 12's named-graph security quietly leaves the PII graph out. The ?c :ssn ?ssn pattern matches nothing, so the join returns 0 rows. Stardog doesn't raise an error and doesn't say a graph was hidden.
4. The model sees 0 rows, runs a second query on the safe graph alone, finds 1 row (Jolynn exists), and answers that the SSN isn't available to this user.

The agent did the right thing here, but look at why it said "permission". prompts/system.md contains this line: "If a query on the PII graph returns no rows, the current user is probably not allowed to see it: say that plainly and do not invent a value." The model is following that guess. Stardog's reply, 0 rows, is exactly what it would also return for a customer who simply has no SSN on file. Suppose (hypothetically) Aurora had a customer with no row in the SSN table: hr_user would get the same 0 rows, and the same prompt line would make the agent say "you're not allowed", which would be wrong. From inside the agent, "doesn't exist" and "not allowed" look the same. Chapter 16 is about answers you can trust, and this gap is part of it.

15.10Login and chat history

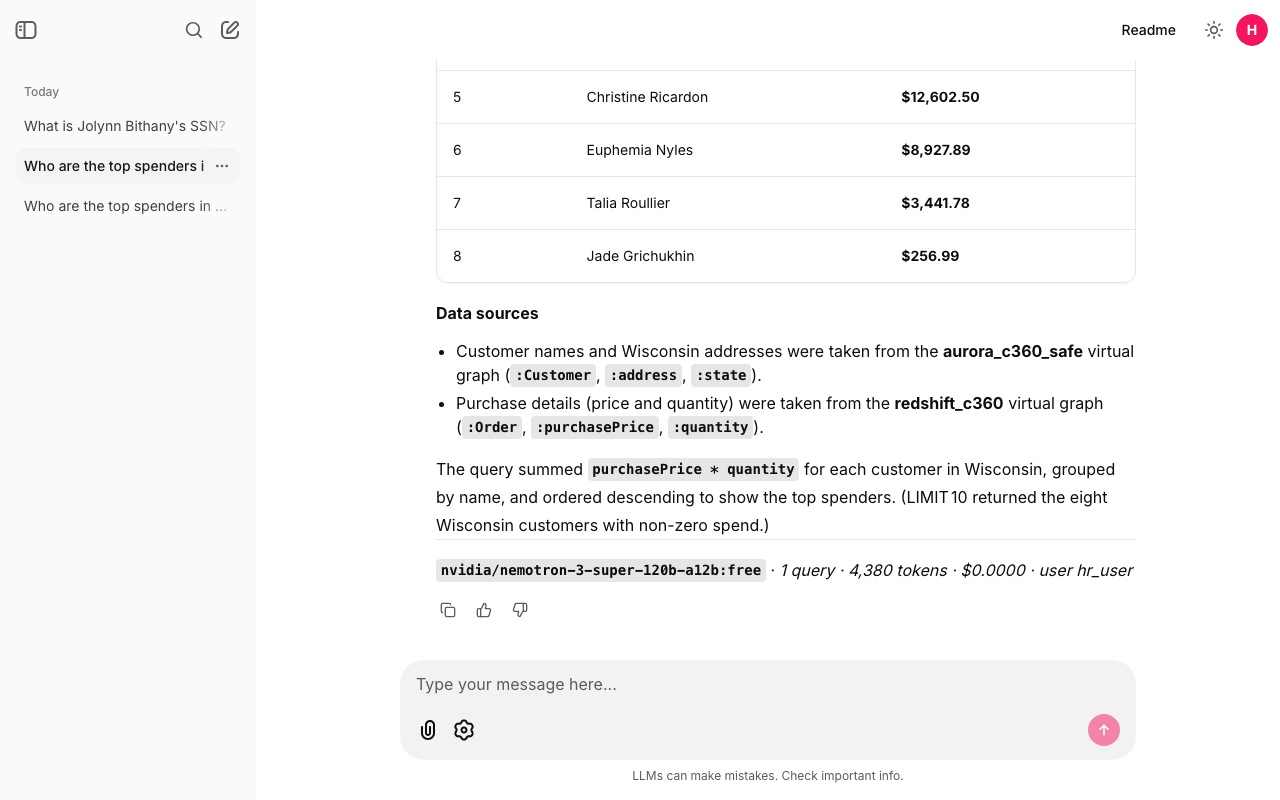

Each chat is saved and listed in the left sidebar under "Today", newest first. Click one to reopen it: the questions, answers and SPARQL steps come back, and you can ask a follow-up ("and in Minnesota?") because the app rebuilds the agent's conversation from the saved messages. The model and schema chosen for that chat come back too.

• Each user sees only their own chats. Chainlit lists only the threads whose owner is the logged-in user, and refuses to open anyone else's. hr_user's sidebar in Figure 15.8 shows three chats; marketing_user's, in Figure 15.7, shows only its one.
• Where it is stored. One SQLite file, data/askgraph.db, with five tables Chainlit uses: users, threads (one row per chat, with its owner), steps (each message and each SPARQL step), elements and feedbacks. history.py creates them on start. For the Wisconsin chat that's one threads row and three steps rows: your question, the SPARQL step, the answer.
• No passwords in it. The password you type is checked by Stardog, then kept in a Python dictionary in the server's memory so your queries can run as you. It is not in the database, not in a file, not in the chat's metadata. If the server restarts, the page asks you to log out and back in.
• The login cookie. Chainlit signs it with CHAINLIT_AUTH_SECRET from ~/.config/semantic-layer/chainlit.env. Changing that secret logs everyone out.
• Wiping history. One chat: its … menu in the sidebar, Delete. All chats: stop the app and run rm data/askgraph.db; an empty one is created on the next start. data/ is in .gitignore, so chats never end up in Git.

15.11Keeping keys out of the project

The project folder holds no secret: it's safe to push to GitHub as it is. The secrets live in a folder of your own, readable only by you. To store the OpenRouter key without it showing on screen or landing in your shell history (zsh):

mkdir -p ~/.config/semantic-layer
read -rs "KEY?OpenRouter key: "; echo
printf 'SEMANTIC_LAYER_OPENROUTER_KEY=%q\n' "$KEY" > ~/.config/semantic-layer/openrouter.env
chmod 600 ~/.config/semantic-layer/openrouter.env; unset KEY

read -rs reads without echoing; printf %q quotes any odd characters safely; chmod 600 makes the file readable only by you. The same recipe with STARDOG_DEMO_USERS_PASSWORD and stardog-users.env stores the demo users' password for the terminal and the tests. An environment variable wins over a file (OPENROUTER_API_KEY, STARDOG_PASSWORD, STARDOG_ENDPOINT), which is handy for a one-off run. The app never uses the admin user stardog_admin: only the two users listed in settings.toml can log in.
